CR-PRO V2 – NEDAP LUMO ANPR

Key features

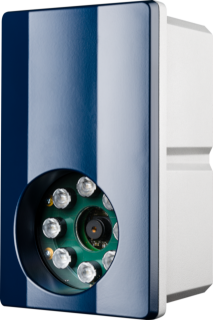

NEDAP Lumo Camera

  • Add License Plate information directly on C•CURE personnel records.

  • Also add License Plate support for visitors through the Web Portal.

  • CR-PRO Automatically Generates ANPR Credentials using the ANPR to bitstream algorithm

  • Supports OSDP output mode, as well as 26bit and 64bit Wiegand operating modes

  • Multiple license plates per person (Car, Bike etc.)

  • All ANPR Access stored on the owner’s Journal Activity

Credential Provisioning for C•CURE 9000

Using license plate recognition technology for vehicle access control has become very popular. Nedap’s ANPR Lumo identifies vehicles by capturing their license plates, making it the perfect solution for situations in which vehicles require access temporarily or incidentally.

The CR-PRO Credential Provisioning Service uses the Lumo ANPR algorithm for calculating and adding ANPR credentials directly to Personnel or Visitor records. All ANPR activity is linked to the owner of the license plate and shows up when consulting the journal.

When used in conjunction with the C·CURE 9000 Visitor Management module, you can add the license plate field to the C·CURE Portal as well, allowing your hosts to provide License Plate access to their visitors.

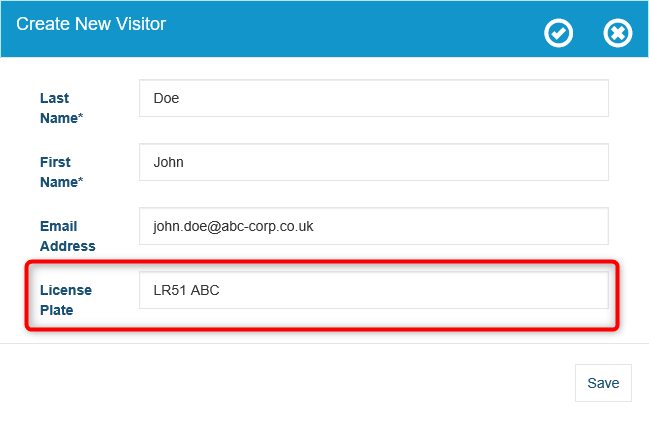

Visitor Management Integration

When used in conjunction with the C•CURE 9000 Visitor Management module, you can add the license plate field to the C·CURE Portal as well, allowing your hosts to provide License Plate access to their visitors.

Stability

Because of the used Wiegand operating mode, no write cycles are performed to the Lumo memory. This brings a few advantages:

  • The number of supported license plates is equal to the limit of your C·CURE server license and the connected controller, with the maximum being 500.000 cardholders

  • Ideal for high-frequency updates such as high-throughput parking as there is no update limit

  • Life cycle of the unit is no longer limited by the number of memory write cycles

Customer Stories

Nedap’s highly advanced ANPR cameras are deployed to significantly enhance parking access at Johnson Controls Office in Madrid

Johnson Controls, the global leader for smart, healthy and sustainable buildings, partnered with Nedap to create an innovative access control solution for its office parking. By implementing ANPR Lumo readers, integrated in Johnson Controls leading access control solution C-Cure 9000, they improved the user experience and safety at their offices in Madrid where over 700 people work. The transition from traditional card readers to long-range vehicle identification eliminated congestion and provided a seamless and secure access control solution.

“Thanks to the new system, garage access is now instantaneous. I no longer need to search for the access card, as the reader instantly recognizes my license plate and grants me entry. Before this system was implemented, forgetting my card meant I had to locate the security guard, provide my details, and wait for access approval from my company’s Facilities or HR department. I recall instances when numerous cars were stuck on the street due to such incidents.”
Paloma García Conzález, Marketing specalist at Johnson Controls.

Nedap - Johnson Controls

Technical Advantages

  • Easy to install, connect the camera like you connect a reader to the controller.
  • No Network wiring needed outside, limit network exposure
  • No database synchronization setup to the camera
  • No write cycles are performed to the Lumo memory, increasing lifespan
  • The number of supported license plates is equal to the limit of your C·CURE server license and the connected controller
  • The ANPR Lumo covers a broad list of world-wide countries supporting a large range of IR-reflective license plates
  • Maintenance free
  • Either standard 26bit or 64bit card numbers (64 bit recommended)
  • All ANPR Access stored on the owner’s Journal Activity
  • Simple but real Access control LPR management software

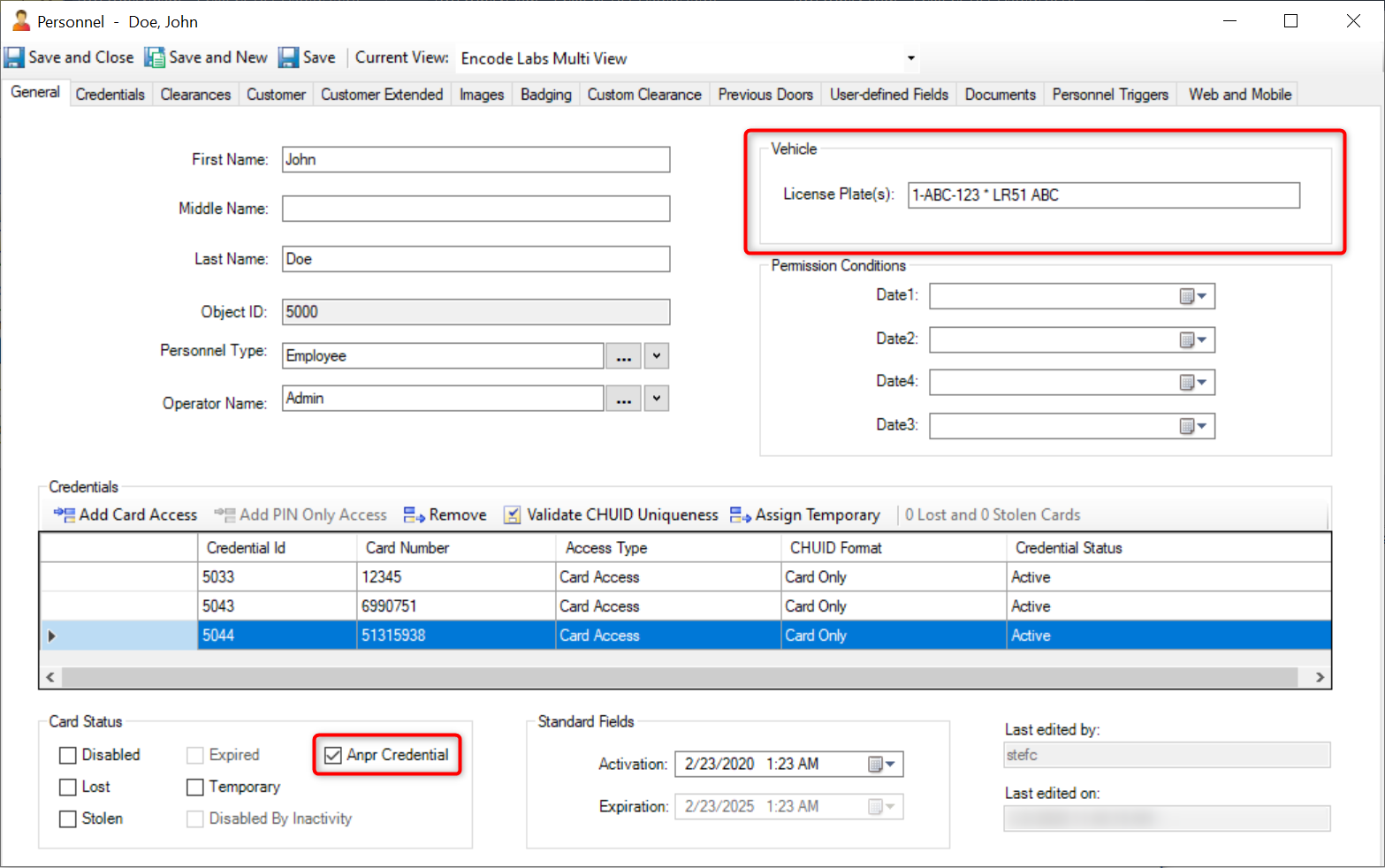

Sample CCURE Personnel View

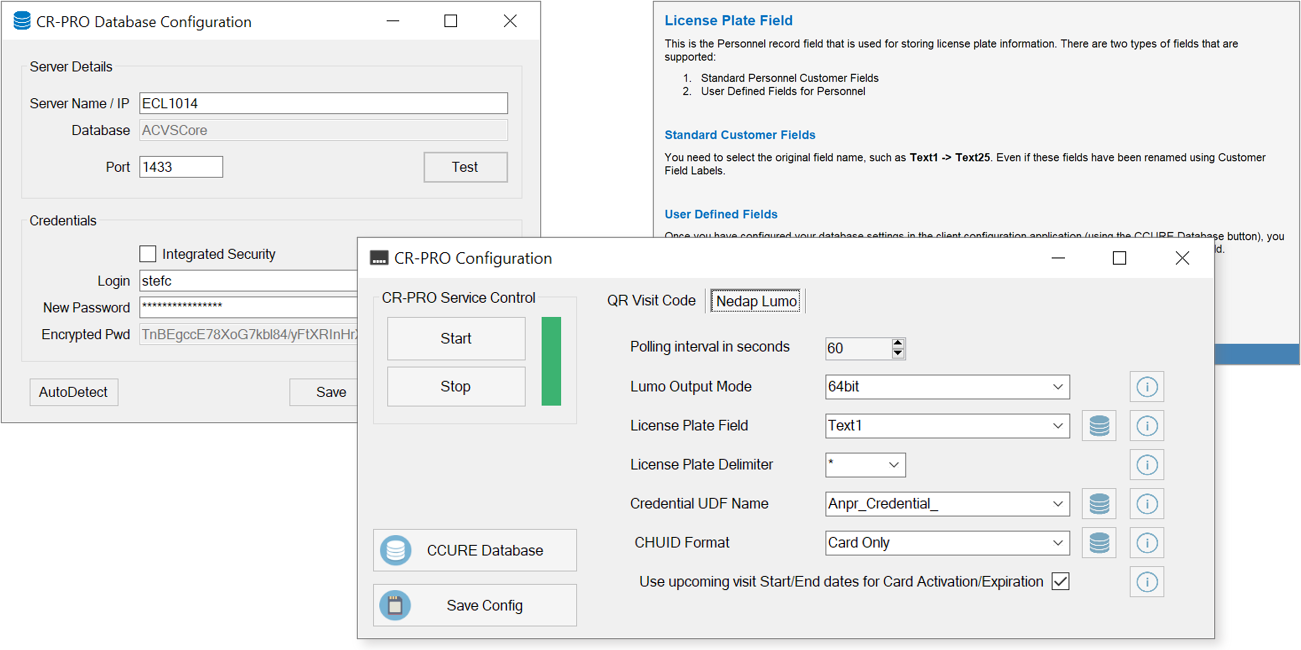

V2 Configuration client

Supported OS

  • Windows Server 2022 Standard & Enterprise (64-bit)
  • Windows Server 2019 Standard & Enterprise (64-bit)
  • Windows Server 2016 Standard & Enterprise (64-bit)
  • Windows 11 Professional & Enterprise (64-bit)
  • Windows 10 Professional & Enterprise (64-bit)

CR-PRO V2 Release Highlights

Installation:

  • Auto-detection and configuration of the database settings when installed on the CCURE Server
  • Start menu shortcuts for log monitoring tools and Password encryption tool

Configuration:

  • Addition of a graphical client for easy configuration of the different software modules
  • Help snippets can be directly displayed that provide info on individual settings
  • Easily Start/Stop the service directly from the UI
  • Auto-preparation of import directories based on detected licenses
  • Support for UDF Fields for license plates

Troubleshooting:

  • Added Baretail by default int the installation package for easy troubleshooting
  • Includes pre-configured journal monitoring colour scheme

Complete new licensing system:

  • Delivery of temporary licenses valid for 3 months
  • Register online for your full license: no HostID required, can be done before installation on the customer site
  • Support for demo/evaluation licenses

And other technical improvements/optimizations.

Downloads

The NEDAP LUMO Module is part of the CR-PRO Credential Provisioning solution. Download the driver from the software download page section. The download contains the installers and required manuals for the configuration of the specific Nedap module.
